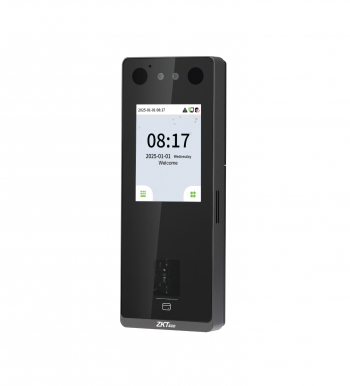

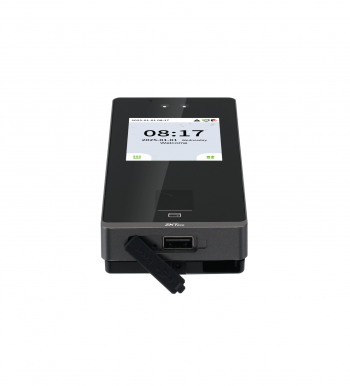

ZKteco BioFace A1

The BioFace A1 is a powerful multi-biometric access control terminal integrating visible light facial authentication and in-glass fingerprint technology for fast, accurate, and secure verification. It supports facial, fingerprint, card, and password authentication with advanced anti-spoofing protection against fake photos and videos. Featuring SIP-based HD video intercom and ONVIF compatibility, it connects seamlessly with indoor units and security systems. Its firmware supports AC push, TA push, and BEST protocol for full integration with ZKBioTime 9.5, BioTime Cloud, and CVSecurity.

ZKteco BioFace A1

Model	BioFace A1
Display	2.8″ TFT Color Touch LED Screen (240×320)
Camera	WDR Binocular Camera @ 1MP
Operating System	Linux
Hardware	CPU Dual Core @1GHz; RAM 512MB; ROM 8GB; Speaker 8Ω @1W; Microphone -42 dB / Omni-directional / SNR 58 dB / Impedance 2.2kΩ; Supplementary Light: No; Fingerprint Sensor: In-Glass Fingerprint (Z-ID)
Authentication Methods	Fingerprint, Face, Card, Password
Fingerprint Template Capacity	6,000 (1:N)
Face Template Capacity	3,000 (1:N)
Card Capacity	6,000
User Capacity	6,000
Transaction Capacity	150,000
Max Password Length	8 digits
Authentication Speed	<0.5s (Fingerprint), <0.35s (Face)
Touchless Facial Distance	30 cm – 200 cm
False Acceptance Rate (FAR)	≤0.01% (Face); ≤0.0001% (Fingerprint)
False Rejection Rate (FRR)	≤0.02% (Face); ≤0.01% (Fingerprint)
Biometric Algorithms	ZKFace V4.0; ZKFingerprint V13.0 (Standard) / V10.0 (Optional)
Card Type	ID 125 kHz (Standard), IC 13.56 MHz (Optional)
Communication	TCP/IP; Wi-Fi 2.4 GHz (Optional); Wiegand Input/Output; RS485; USB Type A; Aux Input; Electric Lock; Door Sensor; Exit Button; 12V Output
Standard Functions	ADMS, DST, Photo Capture, Event Photo Capture, 14-digit User ID, Access Levels, Groups, Holidays, Anti-Passback, Schedule Bell, Tamper Alarm, Auto Status Switch, SIP Client v2.0, ONVIF (Profiles S/T/G/C/Q/A), AC Push / TA Push, HTTPS/SSH Backend, T9 Input
Optional Functions	IC Card, Wi-Fi, Wireless Doorbell
Video Intercom (Private Protocol)	Supports SenseFace Series & VT07-B01/B01-W Indoor Monitors
Video Intercom (SIP)	Supports SenseFace Series, VT07-B22L, VT07-B26L-W; Compatible Software: ZKBio CVAccess, BioTalk Pro; Apps: ZKBio ZLink, ZKBio Zexus
Access Control Interface	RS485 (Card Reader/Biometric Reader)
Power Supply	DC 12V 3A
Operating Temperature	-5°C to 45°C
Operating Humidity	10%–90% (Non-condensing)
Dimensions	166 × 63 × 25 mm
Net Weight	0.185 kg
Supported Software	ZKBio CVAccess (AC Push); ZKBio Time (TA Push); ZKBio Zlink Cloud (Web + Mobile)
Installation	Wall-mount (Asian Gang Box / Single Gang Box compatible)
Ingress Protection	IP65 (Waterproof & Dustproof)
Certifications	ISO14001, ISO9001, CE, FCC, RoHS
