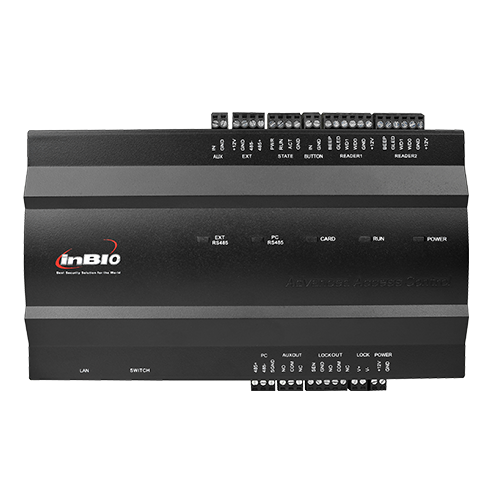

ZKTeco INBIO-160 Access Control Panel
ZKTeco INBIO-160 Access Control Panel
ZKTeco INBIO-160 Access Control Panel
| Category |
Parameter |
Specification |
| Door Control |
Number of Doors Controlled |
1 Door |
| Reader Support |
Number of Readers Supported |
4 (2 RS485 Readers, 2 × 26-bit Wiegand Readers) |
| Reader Compatibility |
Types Supported |
26-bit Wiegand & RS485 FR Series Readers |
| Capacity |
Fingerprint Capacity |
3,000 (Optional 20,000) |
| Capacity |
Card Holders Capacity |
30,000 |
| Capacity |
Log Events Capacity |
100,000 |
| Inputs |
Number of Inputs |
3 (Exit Button, Door Status, Aux) |
| Outputs |
Number of Outputs |
2 (1 Form C relay for Lock, 1 Form C relay for Aux Output) |
| Communication |
Interface |
TCP/IP |
| Hardware |
CPU |
32-bit 400MHz CPU |
| Hardware |
RAM |
32MB |
| Hardware |
Flash Memory |
128MB |
| Power |
Supply |
9.6V – 14.4V DC |
| Environment |
Operating Temperature |
0°C – 45°C |
| Environment |
Operating Humidity |
20% – 80% |
| Mechanical |
Package Dimensions (L × H × W) |
350 × 90 × 300 mm |
| Mechanical |
Package Weight |
3.6 kg |
| Features |
Advanced Access Control |
Anti-Passback, First-Card Opening, Multi-Card Opening, Duress Password Entry, Auxiliary I/O Linkage |
| Features |
Reader Support |
FR Series fingerprint readers via RS485; Wiegand input for RFID readers |
| Features |
Firmware |
Upgradeable without advanced tools |
