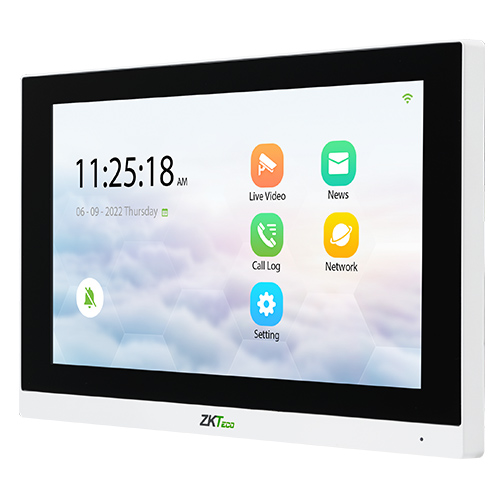

VT07-B01 is a Linux-based video intercom which is an ideal solution for apartment and office buildings. VT07-B01 has a 7” LCD touch screen and provides various functions including audio and video intercom, support outdoor station and indoor monitor communication via TCP / IP, and it can control the main door release.
VT07-B01 can work with access control terminals to integrate access control function with video intercom. At the same time VT07-B01 is compatible with IP cameras and supports ONVIF protocol.

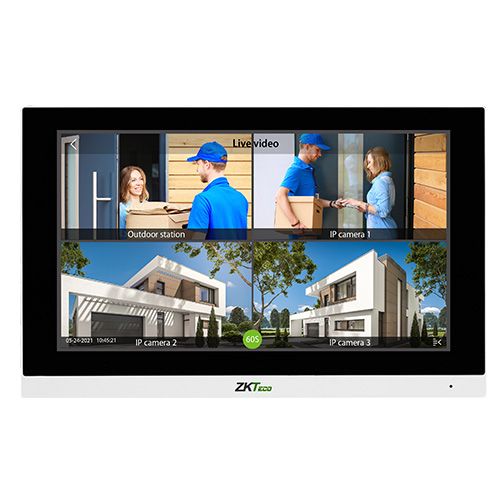

When visitors call-in via the access control terminal, VT07-B01 will automatically show 4 channel video display, including access control video and 3-way IPC videos at the same time. Users have a more detailed view of the outdoor environment.
| Specification | Details |
|---|---|
| Operating System | Linux System |
| DDR | 2 GB |
| Flash | 1 GB |
| Display | 7″ LCD Touch Screen |
| Resolution | 1024 × 768 |
| Video Display | Supports 4-channel video display / full screen |
| Wired Network | RJ45 Network Port |
| Wireless Network | IEEE 802.11b/g/n (Optional) |
| TF Card Slot | Supports up to 128 GB Micro TF Card |
| Network Interface | RJ45 Network Port |
| Power Supply | DC 12V / 2A |
| Operating Temperature | -10°C to 55°C |
| Dimensions | 185 × 117 × 22 mm (W × H × D) |
| Weight | 410 g |
| Certifications | CE, FCC |
