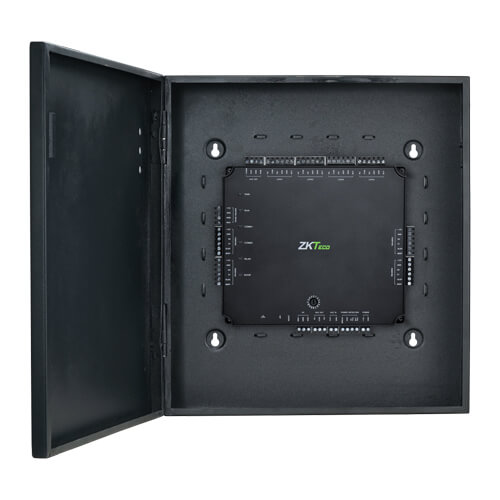

ZKTeco Atlas400-BUN 4 Door Access Panel with PoE and Metal Enclosure
| Category | Parameter | Four-Door Model Specification |
|---|---|---|
| Door Control | Number of Doors Controlled | Four Doors |
| Reader Support | Number of Readers | 4 (Wiegand or OSDP Readers) |
| Reader Compatibility | Supported Types | ZKTeco KR Series and 3rd party 125kHz & 13.56MHz Wiegand, OSDP, RS-485 readers |
| Inputs | Number of Inputs | 5 (2 Exit Buttons, 2 Door Sensors, 1 Aux) |
| Outputs | Number of Outputs | 5 (4 Form C relays for locks, 1 Form C relay for Aux output) |
| Capacity | User Capacity | 5,000 |
| Capacity | Events Database | 10,000 transactions + unlimited archive downloads |
| Communication | Interfaces | TCP/IP, Wi-Fi, Wiegand, OSDP |
| Software | Supported Browsers | Chrome, Firefox, Edge |
| Mechanical | Enclosure | Powder Coated Aluminum |
| Installation | Mounting | Wall Mount |
| Power | Recommended Power Supply | 12V DC, 3A (PoE) |
| Mechanical | Weight | 10 lbs (4 kg) |
| Dimensions | Bundle Dimensions | 14 in × 2.5 in × 12 in (380 × 80 × 280 mm) |

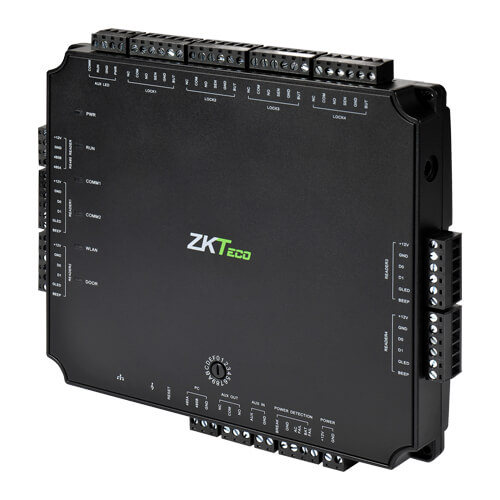

| Dimensions | Board Only | 7.75 in × 6.73 in (197 × 171 mm) |
