| Order ID |

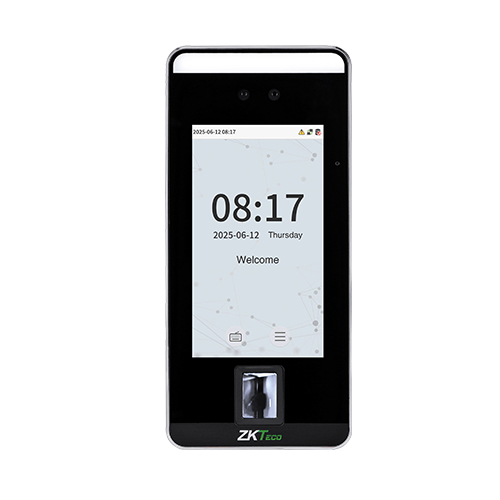

AC01-SP14H-P47 |
AC01-SP12H-P47 |
AC01-SP15H-P47 |
| Display |
5″ ISP Color LCD Screen (720×1280) |
5″ ISP Color LCD Screen (720×1280) |
5″ ISP Color LCD Screen (720×1280) |
| Camera |
Binocular Camera @ 2MP WDR |
Binocular Camera @ 2MP WDR |
Binocular Camera @ 2MP WDR |
| OS |
Linux |
Linux |
Linux |
| Hardware |
Quad Core A55 @1.2GHz; 1GB RAM; 8GB ROM; Supplement Light: Yes; Virtual Keypad: 16 Keys; Fingerprint Sensor: Z-ID; Metallic Silver |
Quad Core A55 @1.2GHz; 1GB RAM; 8GB ROM; Supplement Light: Yes; Virtual Keypad: 16 Keys |
Quad Core A55 @1.2GHz; 1GB RAM; 8GB ROM; Supplement Light: Yes; Physical Keypad: 16 Keys; Metallic Silver |
| Authentication |
Fingerprint / Face / Card / Password (Virtual Keypad) |
Face / Card / Password |
Face / Card / Password |
| Fingerprint Capacity |
10,000 |
— |
— |
| Face Capacity |
10,000 |
10,000 |
10,000 |
| Card Capacity |
10,000 |
10,000 |
10,000 |
| User Capacity |
10,000 |
10,000 |
10,000 |
| Transaction Capacity |
200,000 |
200,000 |
200,000 |
| Password Length |
8 Digits |
8 Digits |
8 Digits |
| Authentication Speed |
<0.5s (FP), <0.35s (Face) |
<0.35s (Face) |
<0.35s (Face) |
| Touchless Distance |
30cm – 170cm |
30cm – 170cm |
30cm – 170cm |
| FAR (False Accept Rate) |
≤0.01% (Face), ≤0.0001% (FP) |
≤0.01% (Face) |
≤0.01% (Face) |
| FRR (False Reject Rate) |
≤0.02% (Face), 0.01% (FP) |
≤0.02% (Face) |
≤0.02% (Face) |
| Algorithms |
ZKFace V3.6; ZKFingerprint V13.0 (Std) / V10.0 (Opt.) |
ZKFace V3.6 |
ZKFace V3.6 |
| Card Type |
ID @125kHz (Opt.), IC @13.56MHz (Opt.); Optional Multi-Tech Modules (ID/IC/DESFire/FeliCa/HID) |
ID @125kHz (Std.), IC @13.56MHz (Opt.); Multi-Tech Modules (same as left) |
ID @125kHz (Std.), IC @13.56MHz (Opt.); Multi-Tech Modules (same as left) |
| QR Code |
— |
— |
Dynamic QR (ZKBio CVAccess App) |
| Communication |
TCP/IP; Wi-Fi (2.4/5GHz, Opt.); Wiegand In/Out; RS485; Aux In/Out; Lock, Door Sensor, Exit Button, Alarm |
TCP/IP; Wi-Fi (2.4/5GHz, Opt.); Wiegand In/Out; RS485; Aux In/Out; Lock, Door Sensor, Exit Button, Alarm |
TCP/IP; Wi-Fi (2.4/5GHz, Opt.); Wiegand In/Out; RS485; Aux In/Out; Lock, Door Sensor, Exit Button, Alarm |
| Standard Functions |
ADMS, DST, Photo/Event Capture, Up to 14-digit User ID, Access Levels, Anti-Passback, Record Query, Tamper Alarm, Multi-verification, T9 Input, AC/TA Push, HTTPS/SSH Access, Mask Detection |
ADMS, DST, Photo/Event Capture, Up to 14-digit User ID, Access Levels, Anti-Passback, Record Query, Tamper Alarm, Multi-verification, T9 Input, AC/TA Push, HTTPS/SSH Access, Mask Detection |
ADMS, DST, Photo/Event Capture, Up to 14-digit User ID, Access Levels, Anti-Passback, Record Query, Tamper Alarm, Multi-verification, T9 Input, AC/TA Push, HTTPS/SSH Access, Mask Detection |
| Optional Functions |
SIP Video Door Phone, ONVIF (Profiles S/T/G/C/Q/A), Wi-Fi, Webserver |
FunctionsSIP Video Door Phone, ONVIF (Profiles S/T/G/C/Q/A), Wi-Fi, Webserver |
FunctionsSIP Video Door Phone, ONVIF (Profiles S/T/G/C/Q/A), Wi-Fi, Webserver |
| Video Intercom |
ZKTeco Private Protocol; Supports VT07-B01/VT07-B01-W |
ZKTeco Private Protocol; Supports VT07-B01/VT07-B01-W |
ZKTeco Private Protocol; Supports VT07-B01/VT07-B01-W |
| SIP Intercom |
SIP v2.0; Supports VT07-B22L, VT07-B26L-W, ZKBio CVAccess, BioTalk Pro, ZKBio Zlink, ZKBio Zexus |
SIP v2.0; Supports VT07-B22L, VT07-B26L-W, ZKBio CVAccess, BioTalk Pro, ZKBio Zlink, ZKBio Zexus |
SIP v2.0; Supports VT07-B22L, VT07-B26L-W, ZKBio CVAccess, BioTalk Pro, ZKBio Zlink, ZKBio Zexus |
| Access Control I/O |
RS-485 (DM10 Controller, Card Reader, Biometric Reader) |
RS-485 (DM10 Controller, Card Reader, Biometric Reader) |
RS-485 (DM10 Controller, Card Reader, Biometric Reader) |
| Power Supply |
DC 12V, 3A |
DC 12V, 3A |
DC 12V, 3A |
| Operating Temp. |
-10°C to 45°C (14°F to 113°F) |
-10°C to 45°C (14°F to 113°F) |
-10°C to 45°C (14°F to 113°F) |
| Operating Humidity |
10% – 90% RH (non-condensing) |
10% – 90% RH (non-condensing) |
10% – 90% RH (non-condensing) |
| Dimensions |
202.93 × 91.93 × 21.5 mm (L×W×H) |
202.93 × 91.93 × 21.5 mm (L×W×H) |
202.93 × 91.93 × 21.5 mm (L×W×H) |
| Net Weight |
0.6 kg |
0.6 kg |
0.6 kg |
| Supported Software |
ZKBio CVAccess (on-prem), ZKBio Time, ZKBio Zlink (Cloud Web & App) |
ZKBio CVAccess (on-prem), ZKBio Time, ZKBio Zlink (Cloud Web & App) |
ZKBio CVAccess (on-prem), ZKBio Time, ZKBio Zlink (Cloud Web & App) |
| Installation |
Wall-mount (Asian gang-box / Single gang-box compatible) |
Wall-mount (Asian gang-box / Single gang-box compatible) |
Wall-mount (Asian gang-box / Single gang-box compatible) |
| Certifications |
ISO14001, ISO9001, CE, FCC |
ISO14001, ISO9001, CE, FCC |
ISO14001, ISO9001, CE, FCC |
