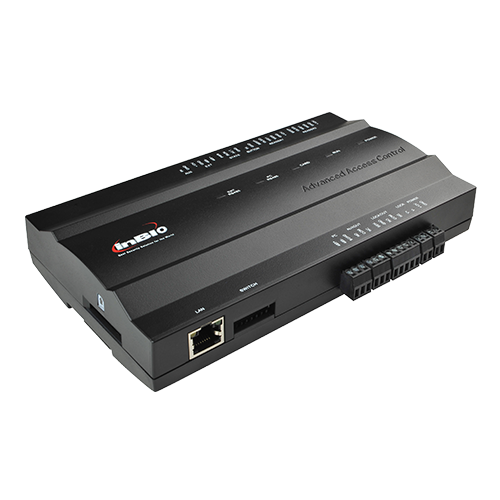

ZKTeco INBIO-160 Access Control Panel

Support different types of readers. The FR Series of readers transmit fingerprint templates to inBio via RS-485. Wiegand inputs are also provided for a traditional RFID reader.s
More than Door Control. Access additional control and interface with auxiliary relays
Communication. Can be installed easily on your network and supports both TCP/IP and RS-485 communication
Capacity. Support up to 3000 fingerprint templates, 30,000 cards, and store up to 100,000 events and transactions.
Advanced Access Control Built-In. Anti-Passback, First-Card Opening, Multi-Card Opening, Duress Password Entry, and Auxiliary input/output linkages are built into the controller firmware.
Lowest Total Cost of Ownership. Controller firmware can be upgraded without any advanced tools

SKU: INBIO-160

Specification	Details
Number of Doors Controlled	1 Door
Number of Readers Supported	4 (2 RS-485 readers, 2 26-bit Wiegand readers)
Types of Readers Supported	26-bit Wiegand and RS-485 FR Series readers
Number of Inputs	3 (Exit Button, Door Status, Aux)
Number of Outputs	2 (1 Form C relay for lock, 1 Form C relay for Aux output)
Card Holders Capacity	30,000
Fingerprint Capacity	3,000 (Optional: up to 20,000)
Log Events Capacity	100,000
Communication	TCP/IP
Package Dimension	350 × 90 × 300 mm (L × H × W)
Package Weight	3.6 kg
CPU	32-bit 400 MHz CPU
RAM	32 MB
Flash Memory	128 MB
Power	9.6V – 14.4V DC
Operating Temperature	0 °C – 45 °C
Operating Humidity	20% – 80%

Brand	Zkteco
