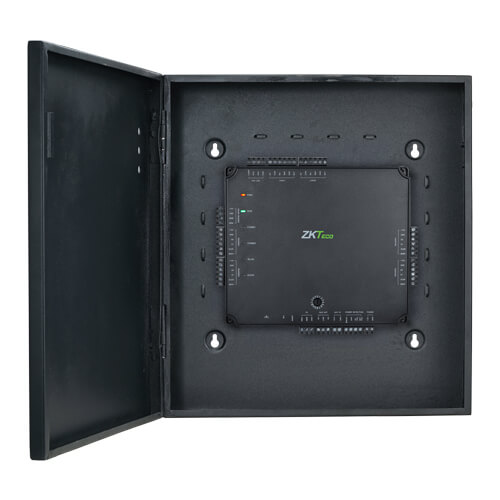

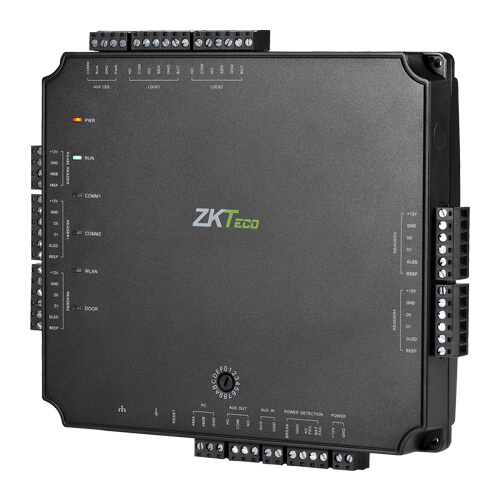

zkteco Atlas-200 2-Door Access Control Panel
| Specification | |
|---|---|
| Number of Doors Controlled | 2 Doors |
| Number of Readers Supported | 4 (Wiegand or OSDP Readers) |
| Types of Readers Supported | ZKTeco KR Series readers and 3rd party 125kHz & 13.56MHz Wiegand, OSDP, RS-485 readers |
| Number of Inputs | 5 (2 Exit Buttons, 2 Door Sensors, 1 Aux) |
| Number of Outputs | 3 (2 Form C relays for locks, 1 Form C relay for Aux output) |
| User Capacity | 5,000 |
| Events Database Capacity | 10,000 transactions + unlimited archive downloads |
| Communication | OSDP, TCP/IP, Wi-Fi, Wiegand |
| Browsers Supported | Chrome, Edge, Firefox |
| Enclosure | Powder-coated aluminium |
| Mounting | Wall mount |
| Recommended Power Supply | 12V DC, 3A (PoE) |
| Dimensions (Bundle Only) | 380 × 80 × 280 mm (14 × 2.5 × 12 in) |
| Dimensions (Board Only) | 197 × 171 mm (7.75 × 6.73 in) |
| Weight | 4.2 kg (10 lbs) |
