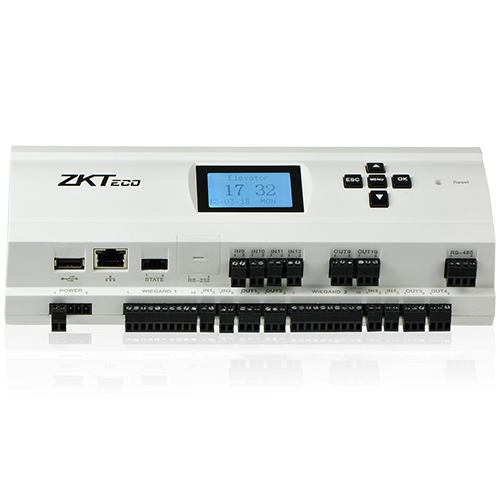

ZKTeco EC10 Elevator Controller
| Specification | Details |
|---|---|
| Number of Floors Controlled | 10 floors per EC10 (expandable with EX16 up to 58 floors) |
| Communication | TCP/IP, RS-485 |
| Max Readers Supported | 2 (RS-485 or Wiegand readers) |
| Input Ports | 10 (for floor buttons), 2 (for Exit Button & Door Sensor) |
| Output Ports | 10 relays (one per controlled floor) |
| Card Capacity | 30,000 |
| Log Capacity | 100,000 events |
| Power Supply | 12V DC, 1A |
| Operating Temperature | -20°C ~ +65°C |
| Operating Humidity | 10% ~ 90% RH (non-condensing) |
| Dimensions (L × W × H) | 242 × 95 × 60 mm |
| Mounting | Wall Mount |
| Expansion | Supports up to 3 × EX16 boards (16 floors each) |
| Software | ZKBioSecurity / ZKBio CVAccess |
